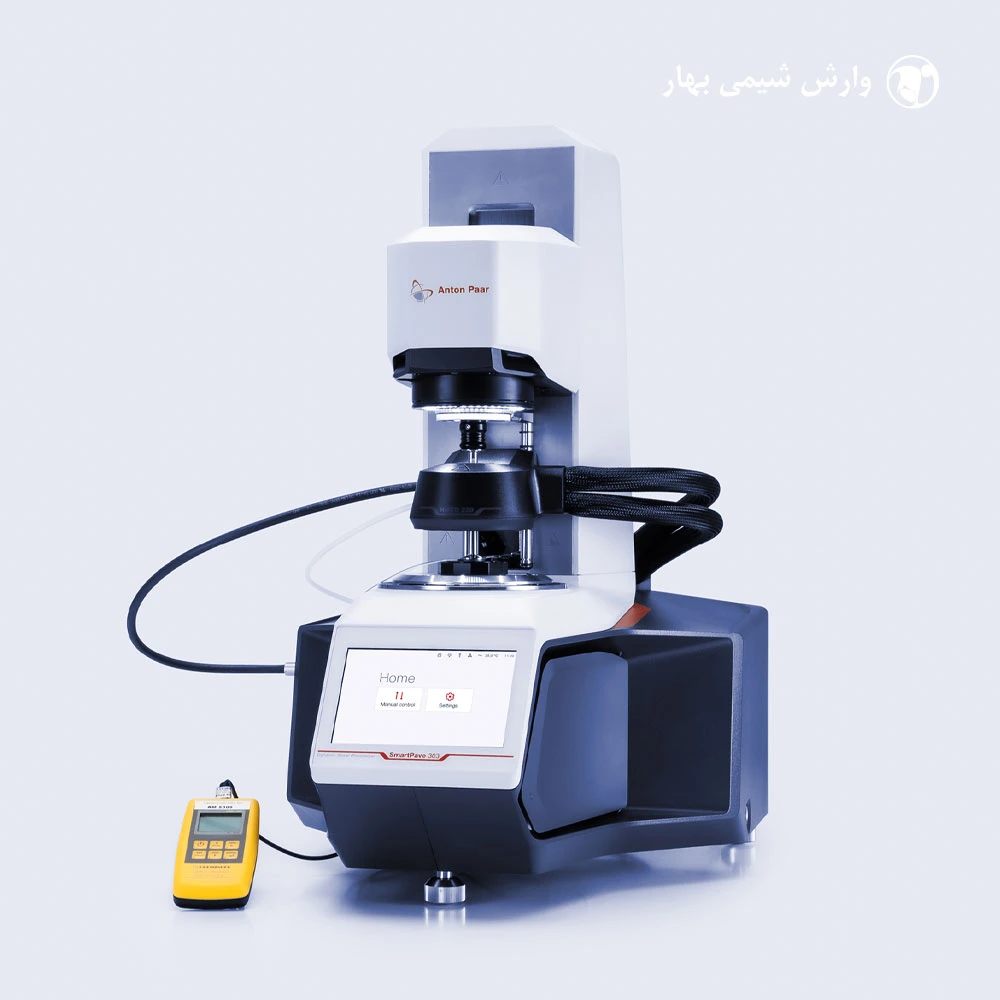

SmartPave 102e Specifications
| Technical Data | Unit | Specification |
|---|---|---|
| Design Specifications | ||
| Bearing design | – | Air, fine-pored carbon |
| Motor design | – | Electronically Commutated (EC) – Permanent Magnet Synchronous Motor |
| Displacement transducer design | – | High-resolution optical encoder |
| Normal force measurement design (US Pat. 6167752,1996) | – | 360° capacitive sensor, non-contacting, fully integrated in bearing |
| Working mode | – | Combined Motor Transducer (CMT) |
| Torque Specifications | ||
| Minimum torque (rotation) | nNm | 5 |
| Minimum torque (oscillation) | nNm | 2 |
| Maximum torque | mNm | 200 |
| Angular Specifications | ||
| Minimum angular deflection (set value) | µrad | 0.5 |
| Maximum angular deflection (set value) | µrad | ∞ |
| Minimum angular velocity | rad/s | 0 |
| Maximum angular velocity | rad/s | 314 |
| Maximum speed | 1/min | 3000 |
| Minimum speed (CSS/CSR) | 1/min | 10-7 |
| Minimum angular frequency | rad/s | 10-7 |
| Maximum angular frequency | rad/s | 628 |
| Maximum frequency | HZ | 100 |
| Normal force range | N | -50 to 50 |
| Normal force sensitivity | N | 0.01 |
| Minimum gap size change | µm | 0.625 |
| Physical Specifications | ||
| Dimensions (W × H × D) | mm | 444 × 678 × 586 |
| Weight | kg | 42 |
| Device Features | ||
| Device display with remote control of software | – | Yes |
| Direct strain/stress controller | – | Yes |
| TruStrain™ (sample adaptive controller) | – | Yes |
| TruRate™ (sample adaptive controller) | – | Optional |
| Raw data (LAOS, waveform) | – | Optional |
| Normal force profiles (set and read) | – | Yes |
| Velocity profiles, tack, squeeze | – | Yes |
| Automatic gap control/setting (AGC/AGS) | – | Yes |
| Electronic trim lock for measuring geometry | – | Yes |
| TruGap™ (permanent control of the real measuring gap) | – | Optional |
| T-Ready™ (detection of sample temperature equilibrium time) | – | Yes |
| Toolmaster™ (measuring geometries and accessories) | – | Yes |
| QuickConnect Coupling for measuring geometries | – | Yes |
| Trimming mirror (360° blind sample spot prevention) | – | Yes |
| Three-point support of device | – | Yes |
| Three-point support for mounting of measuring cells | – | Yes |
| Maximum temperature range | °C | -160 to +1000 |
| Virtually gradient-free temperature control | – | Yes |
| Temperature gradient >0.1 °C according to AASHTO and ASTM | – | Yes |
| CoolPeltier™ Peltier System (-5 to +200°C) | – | Yes |
| Pressure Cell | bar | up to 1000 |
| Software Features | ||
| RheoCompass Software with Asphalt SOPs | – | Yes |
| Auto Update via Network | – | Optional |
| Fully automatic temperature calibration | – | Yes |
| Test and analysis designer | – | Yes |
| Report designer | – | Yes |
| Managed lab multiple clients and servers | – | Optional |
